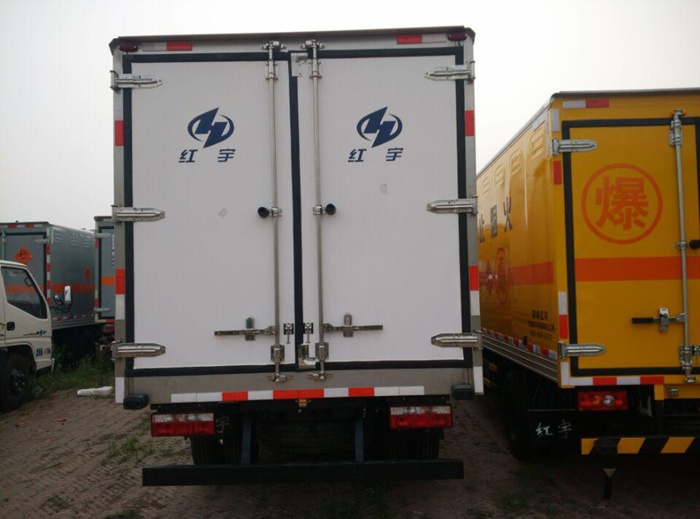

ISUZU 100p refrigerated truck
ISUZU 100p refrigerated truck parameters:
|
Vehicle model： |
HYJ5074XLC Refrigerated truck |
Brands |
HONGYU |
|
Engine |
|
Displacement(ml) |
Power(kw) |
|
4KH1-TC |
|
2999 |
96 |
|
|
|
Fuel type： |
Diesel(mm) |
|
The overall dimension： |
5995×1930×2815(mm) |
Box van dimension： |
4050×1700×1600(mm) |
|
The total mass： |
7300(Kg) |
|
|
|
Outfit mass： |
3210(Kg) |
Payload： |
3960(Kg) |
|
Approach/departure angle： |
24/16(°) |
Before hanging / rear overhang |
1015/1620(mm) |
|
Axle load： |
2500/4800 |
axle base |
3360(mm) |
|
Axle number： |
2 |
Max speed： |
100(km/h) |
|
|
|
Springs number： |
8/6+5 |
|
Tyre numbers： |
6 |
Tyre specification： |
7.50-15,7.50R15,7.00-16,7.00R16 |
|
track front： |
1504 |
track rear： |
1425 |
|
Vin： |
LWLDARHG××××××××× |
||
Detailed sandwich panel for ISUZU 100p refrigerated truck truck body :
Our common sandwich panel for truck body details :
(1)ISUZU 100p refrigerated truck Structure:
Sandwich structure，fiberglass+PU+fiberglass
(2) Material :
1.All the double surface sandwich polyurethane panel and door are 100mm thickness.
the Fiberglass plate thickness is 2.5mm for the outer and inner skin;the polyurethane foam density is 45-50 kg/m³.(all of the best material in China and have the best insulated performan
2.The Hardware(the door frame ,hinge,lock,handle) are all made for 304 stainless steel.
3.Aluminum alloy sides and 304 stainless steel wrap angle.
4.The rubber seal.60years life time longth
