Semitrailer
当前位置：首页>Products>Semitrailer
Semi-trailer

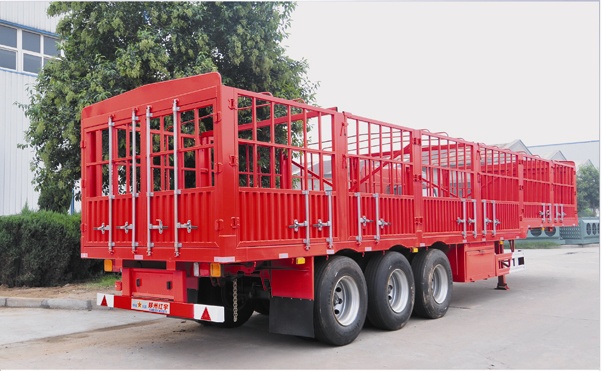

semitrailer photos:
Semi-trailer parameters:
| Type | Fence Cargo semi trailer | |
| Delivery time | ||
| Specification: | ||
| outfitmass | 8.5T | |
| load | 45 T | |
| dimension (L*W*H) | 12400*2500*2860mm(side wall is 1000mm) | |
| Axle | 3 axles *13T BPW brand 13TBPW | |
| suspension | Common Mechanical（American type） | |
| Rim | 9.0-22.5,12+1 spare rims | |
| Tire | 315/80R22.5,12+1 spare tire pieces, Double Coin brand | |
| Steel Spring | 10 pieces | |
| King Pin | 2.0 ‘’ or 3.5‘’ JOST traction pin (Special for export) | |
| 2.0”和3.5”JOST | ||
| Spare Tire Carriers | 2 piece | |
| Frame: (specs. and materials） | Main beam height is 500mm | |
| 500mm | ||
| Upper plate is 14mm, lower plate is 16mm, middle is 8 mm. | ||
| Side beam is 16# channel steel. | ||
| floor | 3mm diamond plate 3mm | |
| landing leg | JOST C200T | |
| 12 pieces | ||
| Brake: | WABCO Brand (Special for export) | |
| Brake Chamber | Four double and two single chambers | |
| Diesel Tank | 850 Liters | |
| Drinking water tank | 250Liters | |
| Electrical: | ||
| Voltage | 24V | |
| Receptacle | 7 ways(7 wire harness) | |
| Light color: | ||
| Front marker lamp | front corner marker lamp is red, Reflector lamp is white |
|
