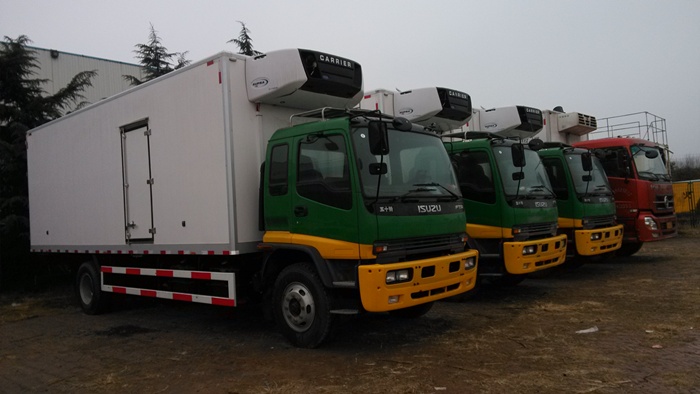

10T ISUZU Refrigerated truck 700P
|
ISUZU Refrigerated truck parameter |
|||
|
Vehicle model： |
HYJ5161XLC Refrigerated truck |
Brands |
HONGYU |
|
Engine |
|
Displacement(ml) |
Power(kw) |
|
6HK1-TC |
|
7790 |
191 |
|
|
|
Fuel type： |
Diesel (mm) |
|
The vehicle overall dimension： |
9775×2495×3860(mm) |
Box van inside dimension： |
7200×2280×2300(mm) |
|
The total mass： |
18750(Kg) |
|
|
|
Outfit mass： |
8035(Kg) |
load ： |
11200(Kg) |
|
Approach/departure angle： |
26/17(°) |
Before hanging / rear overhang |
1335/2890(mm) |
|
Axle load： |
5750/10000 |
Wheel base |
5550(mm) |
|
Axle number： |
2 |
Max speed： |
110(km/h) |
|
|
|
Springs number： |
9/14 |
|
Tyre numbers： |
6 |
Tyre specification： |
10.00R20-16PR,10.00-20-16PR,11.00-20-18PR |
|
Track front： |
1960 |
Track rear： |
1855 |
|
VIN: |
LWLYURGK××××××××× |
||
ISUZU Refrigerated truck body detailes:
Detailed sandwich panel for truck body :
Our common sandwich panel for truck body details :
(1)ISUZU Refrigerated truck body Structure:
Sandwich structure，fiberglass+PU+fiberglass
(2) ISUZU Refrigerated truck body Material :
1.All the double surface sandwich polyurethane panel and door are 100mm thickness.
the Fiberglass plate thickness is 2.5mm for the outer and inner skin;the polyurethane foam density is 45-50 kg/m³.(all of the best material in China and have the best insulated performan
2.The Hardware(the door frame ,hinge,lock,handle) are all made for 304 stainless steel.
3.Aluminum alloy sides and 304 stainless steel wrap angle.
4.The rubber seal.60years life time longth .
