Refrigerated truck 当前位置:首页>Products>Refrigerated truck

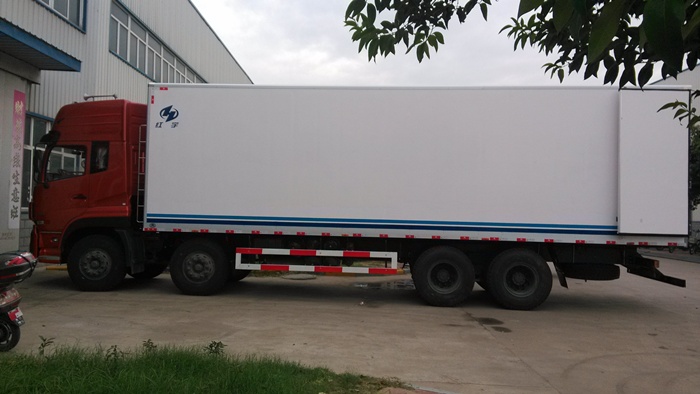

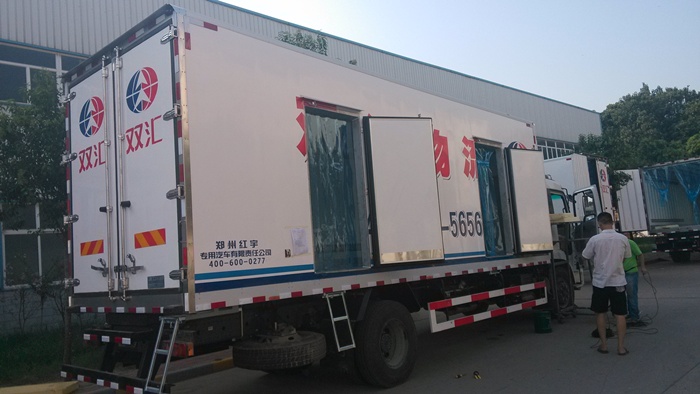

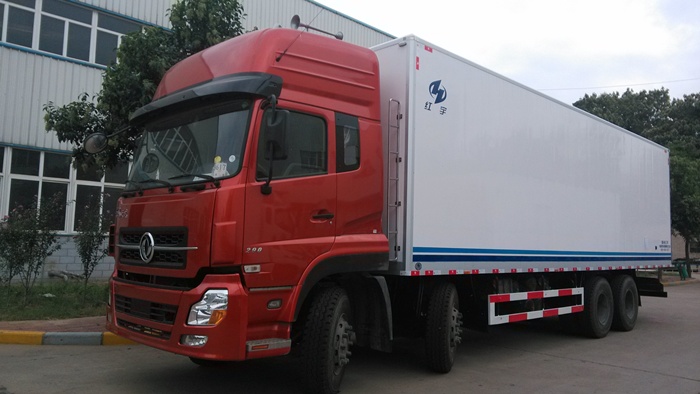

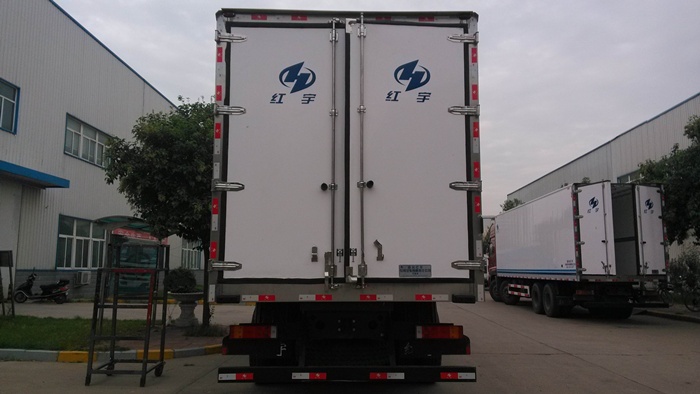

Dongfeng refrigerated truck

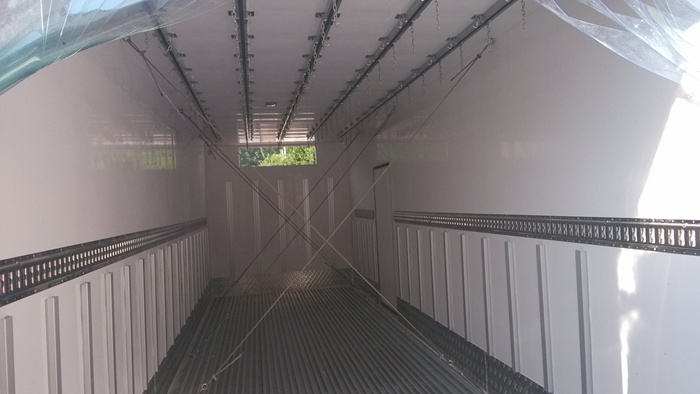

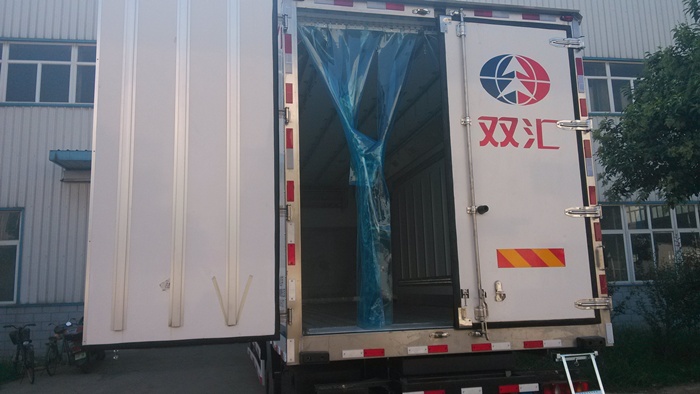

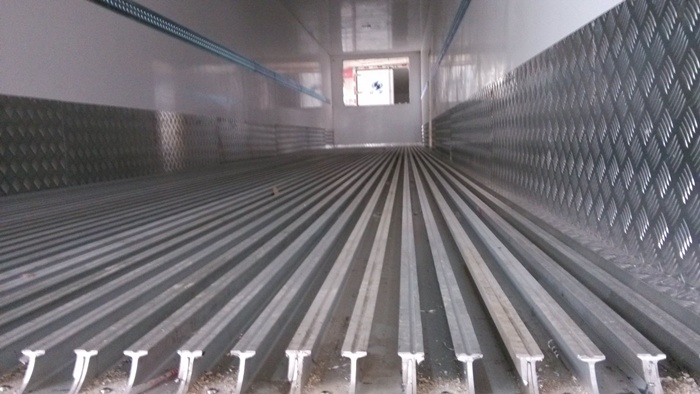

 Refrigerated  truck body Detailed:

Our common sandwich panel for truck body details :

(1) Refrigerated  truck body Structure:

Sandwich structurefiberglass+PU+fiberglass

(2)Refrigerated  truck body Material :

1.All the double surface sandwich polyurethane panel and door are 100mm thickness.

 the Fiberglass plate thickness is 2.5mm for the outer and inner skin;the polyurethane foam density is 45-50 kg/m³.(all of the best material in China and have the best insulated performan

2.The Hardware(the door frame ,hinge,lock,handle) are all made for 304 stainless steel.

3.Aluminum alloy sides and 304 stainless steel wrap angle.

4.The rubber seal.60years life time longth

(3)sandwich panel for Refrigerated  truck body We supply :

1.The thickness can be changed according to customer’s requirements

60mm,80mm,100mm

 2.The dimension of panel can be chosen at the follow range:

Length 0-15000mm

Width 0-3100mm

Thickness 25-135mm
